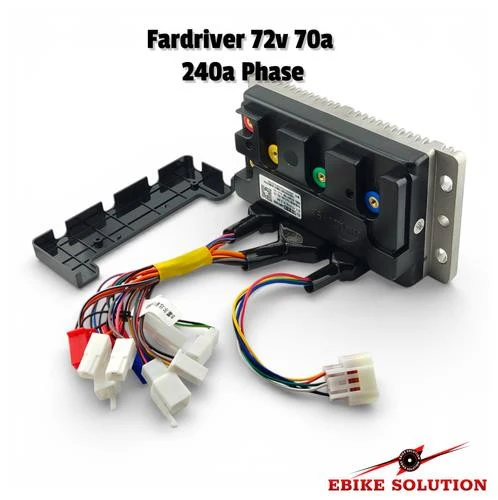

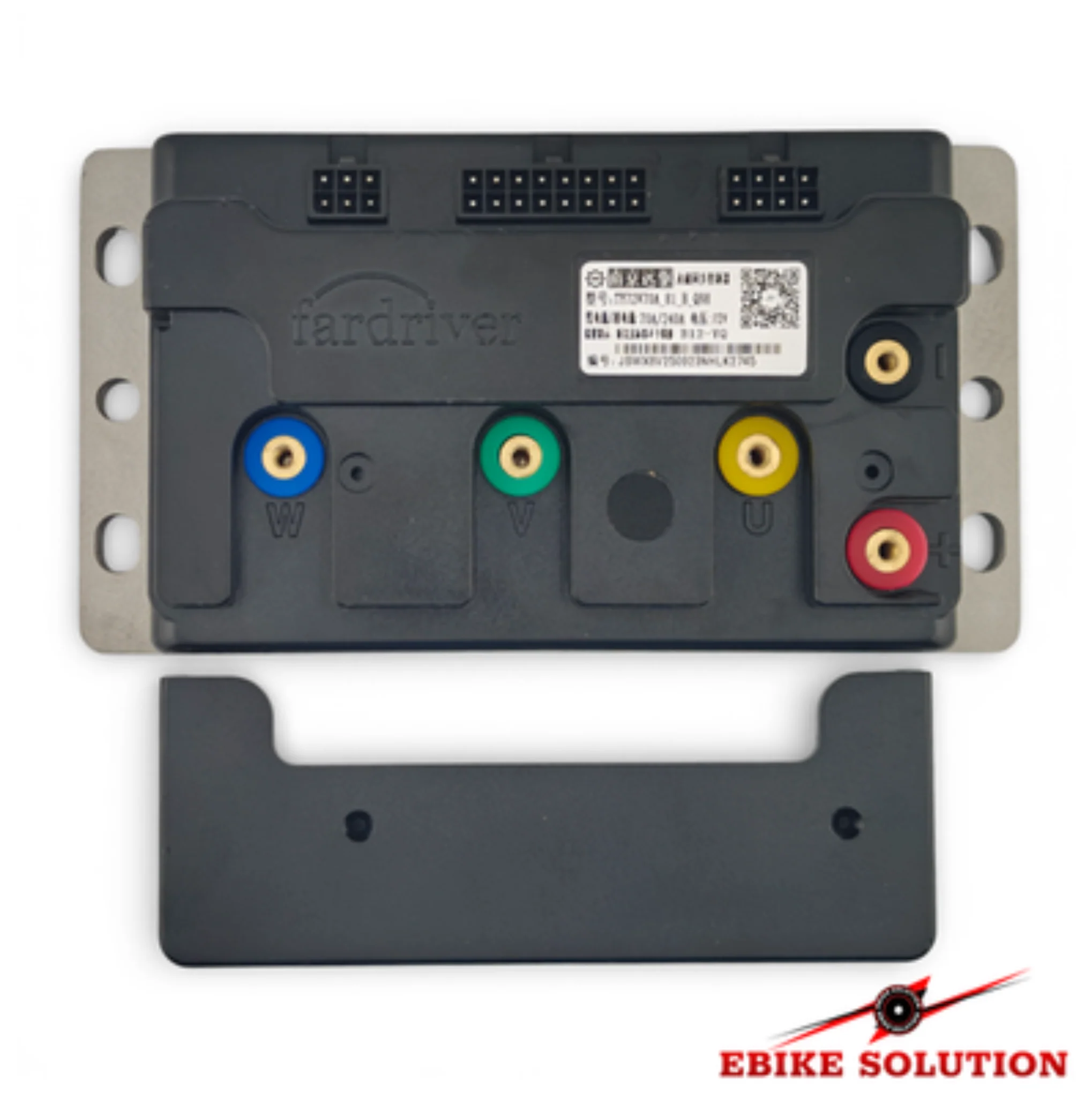

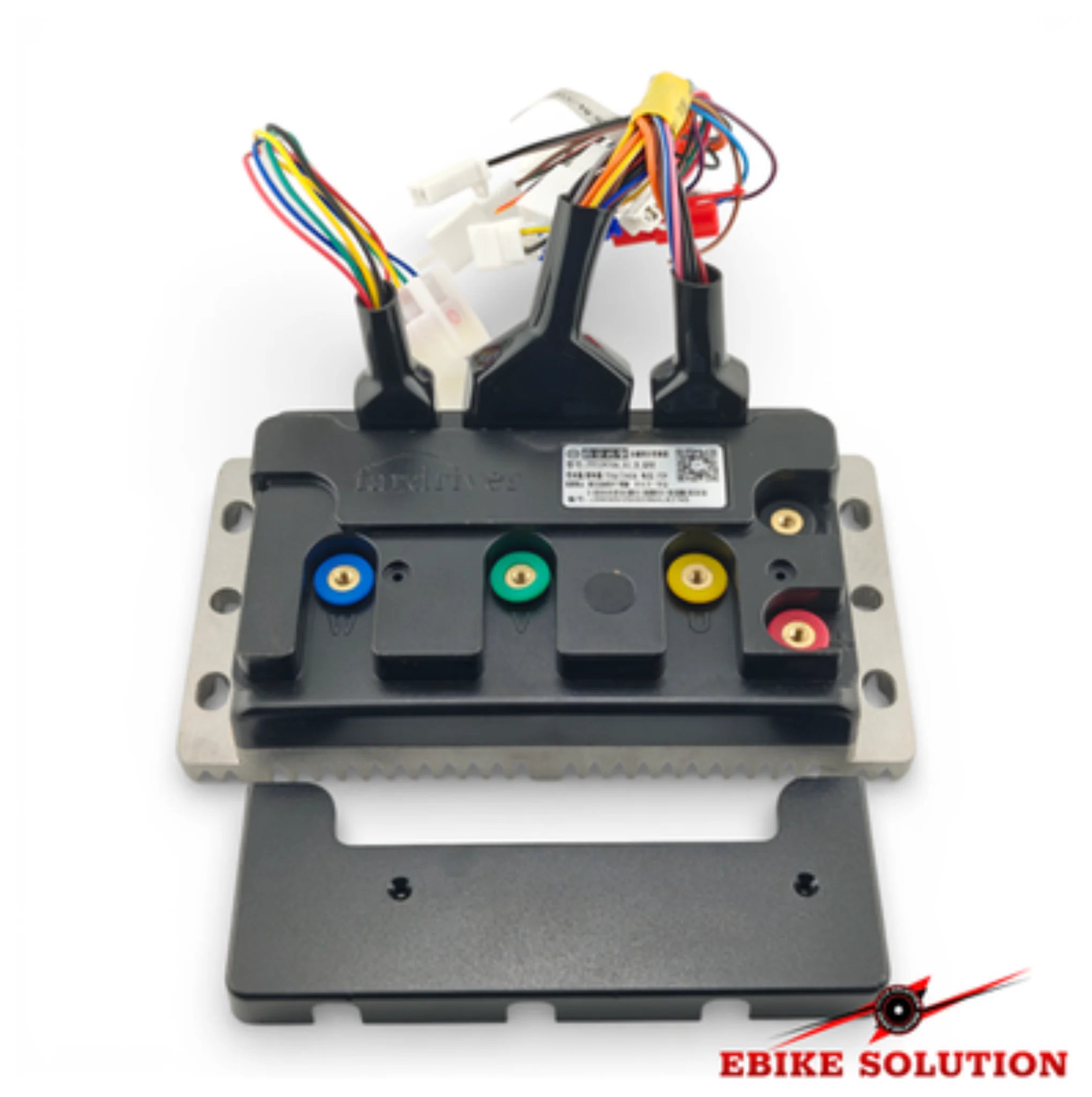

Fardriver 72V 70A/240A EV Programmable FOC BLDC Controller Motor 70a DC 4000W

Fardriver 72V 70A/240A EV Programmable FOC BLDC Controller Motor 70a DC 4000W

• Check your motor type: Is it a BLDC or PMSM Motor?
• Check the controller functions to ensure it's suitable for you.
• Check the controller size to ensure proper installation.

Key Features

• Suitable for middle and high-speed motorcycles with in-wheel motors, mid-mounted motors, and high-end Vehicle.
• Uses high-quality, fully imported MOS core.

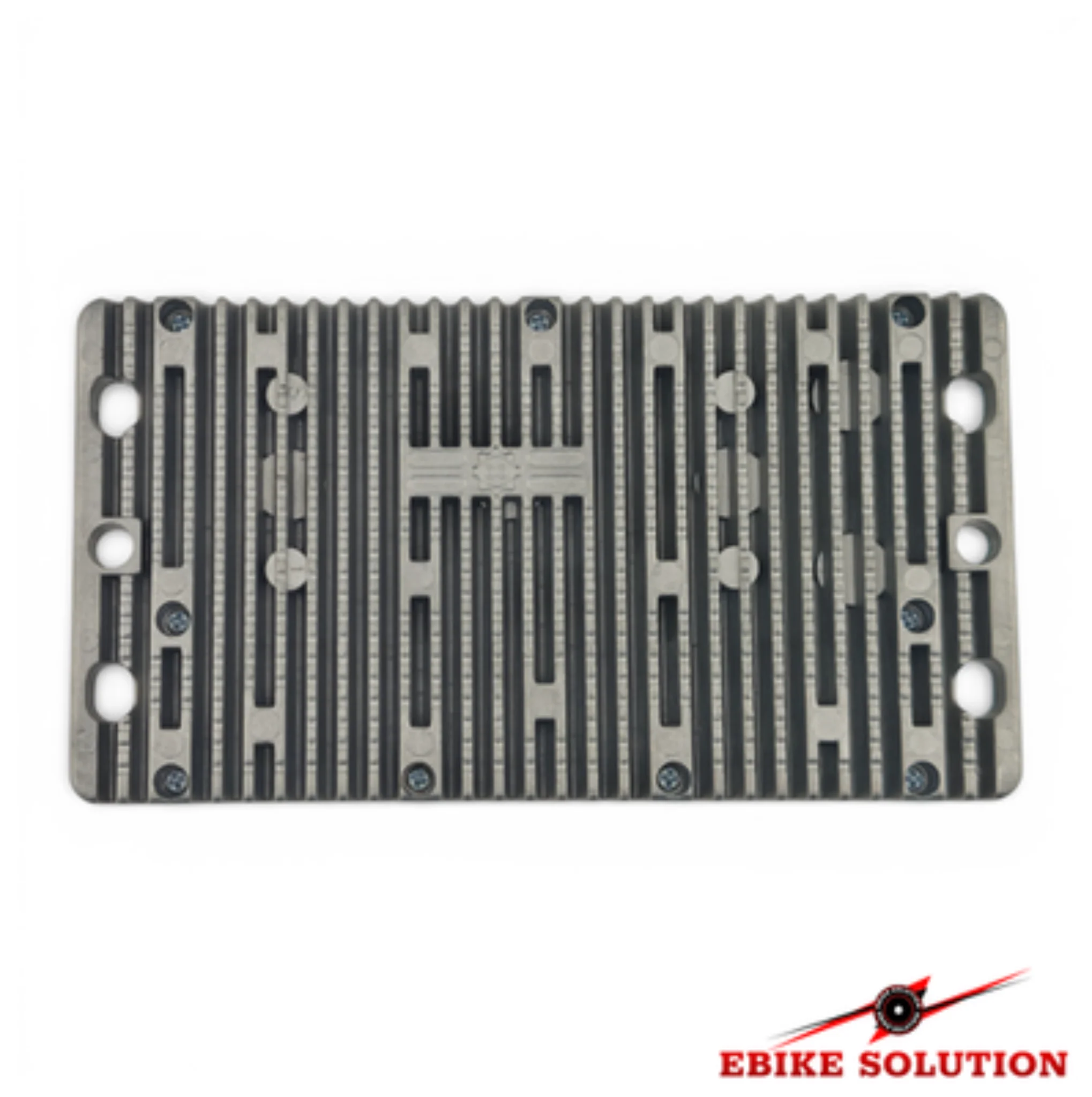

• Full metal shielding and aluminium heat dissipation structure.
• The hardware architecture and software implementation are perfectly matched and refined.

General Specifications

• Controller Type: Sine Wave FOC Controller
• Model Number: TY72v70a
• Max. Bus Current: 70A
• Max. Phase Current: 240A
• Working Voltage: 48V/60V/72V, max. 88V
• Compatible Motor Power: 1000W-4000W

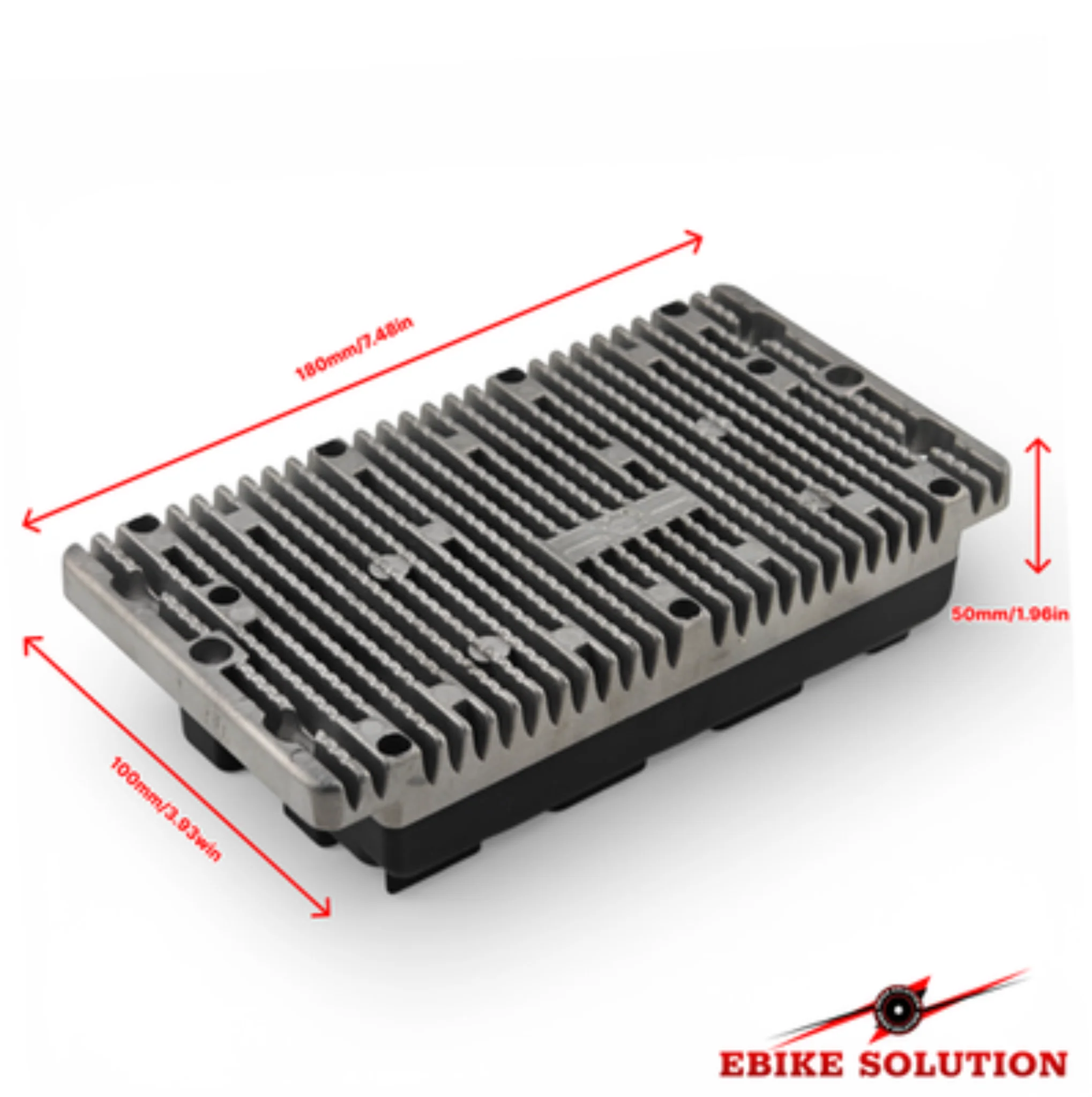

• Size: 180mm/7.48in* 100mm/3.93win * 50mm/1.96in
• Weight: 1KGS

Note

• Due to factory adjustments, sometimes the DC or phase current may vary slightly (either lower or higher than described), depending on the PCB board in stock.
• However, these variations do not significantly affect the controller's performance.
• If you are concerned about these differences, please consider carefully before purchasing.
