Ebike Scooter 3000w Hub Motor Cable Replacement 10mm External Dimension XT150

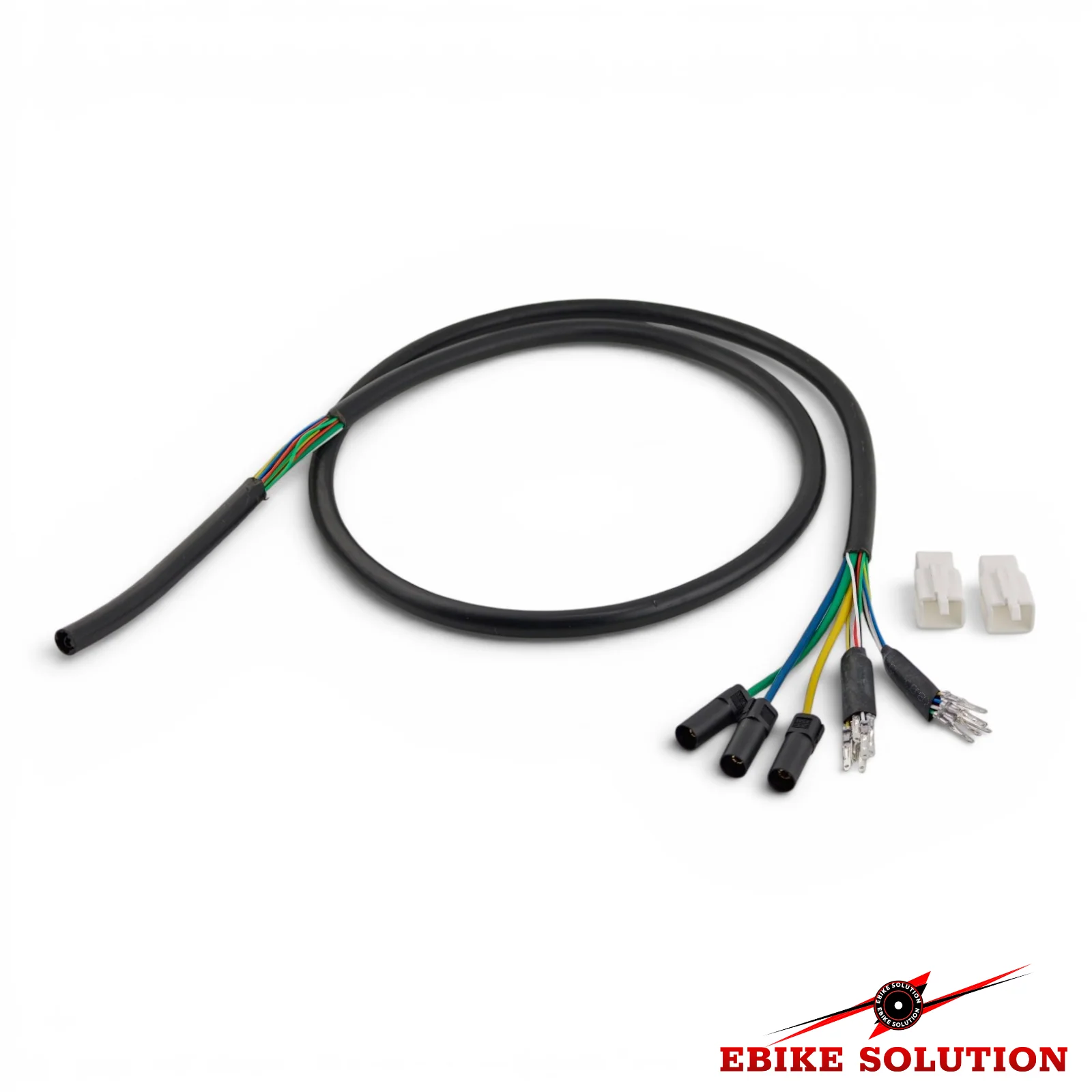

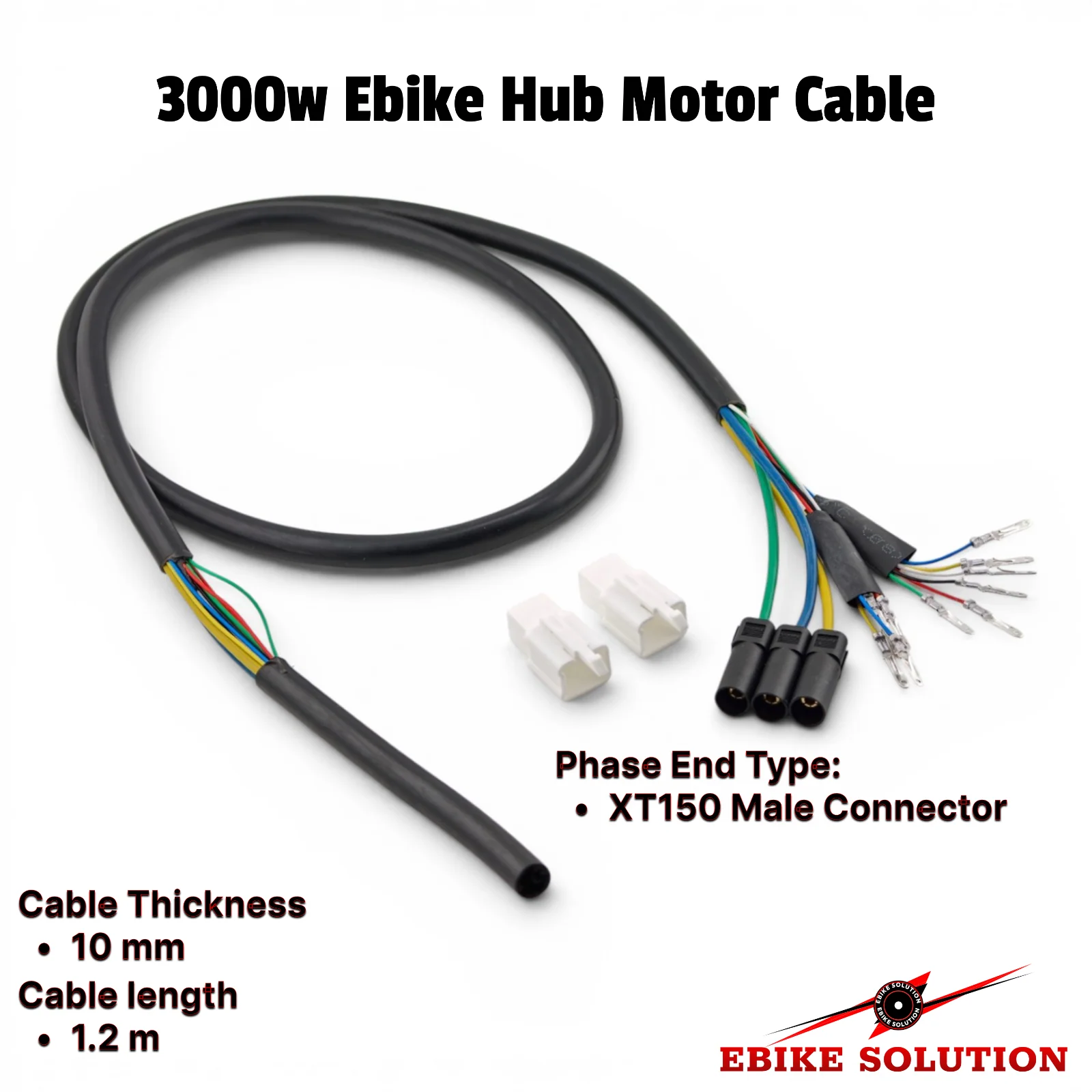

3000W E-Bike / Scooter Hub Motor Replacement Cable (9AWG / XT150)

Replace or upgrade your high-power e-bike or scooter motor wiring with this premium 3000W Hub Motor Cable. Built to handle massive power loads, this heavy-duty, high-quality cable features thick 9AWG phase wires with XT150 connections and a comprehensive dual Hall sensor wire setup for ultimate reliability.

---

Key Features

• Heavy-Duty Wiring: Utilizes ultra-thick 9AWG (6mm²) phase wires to safely and efficiently handle up to 3000W of power without overheating.

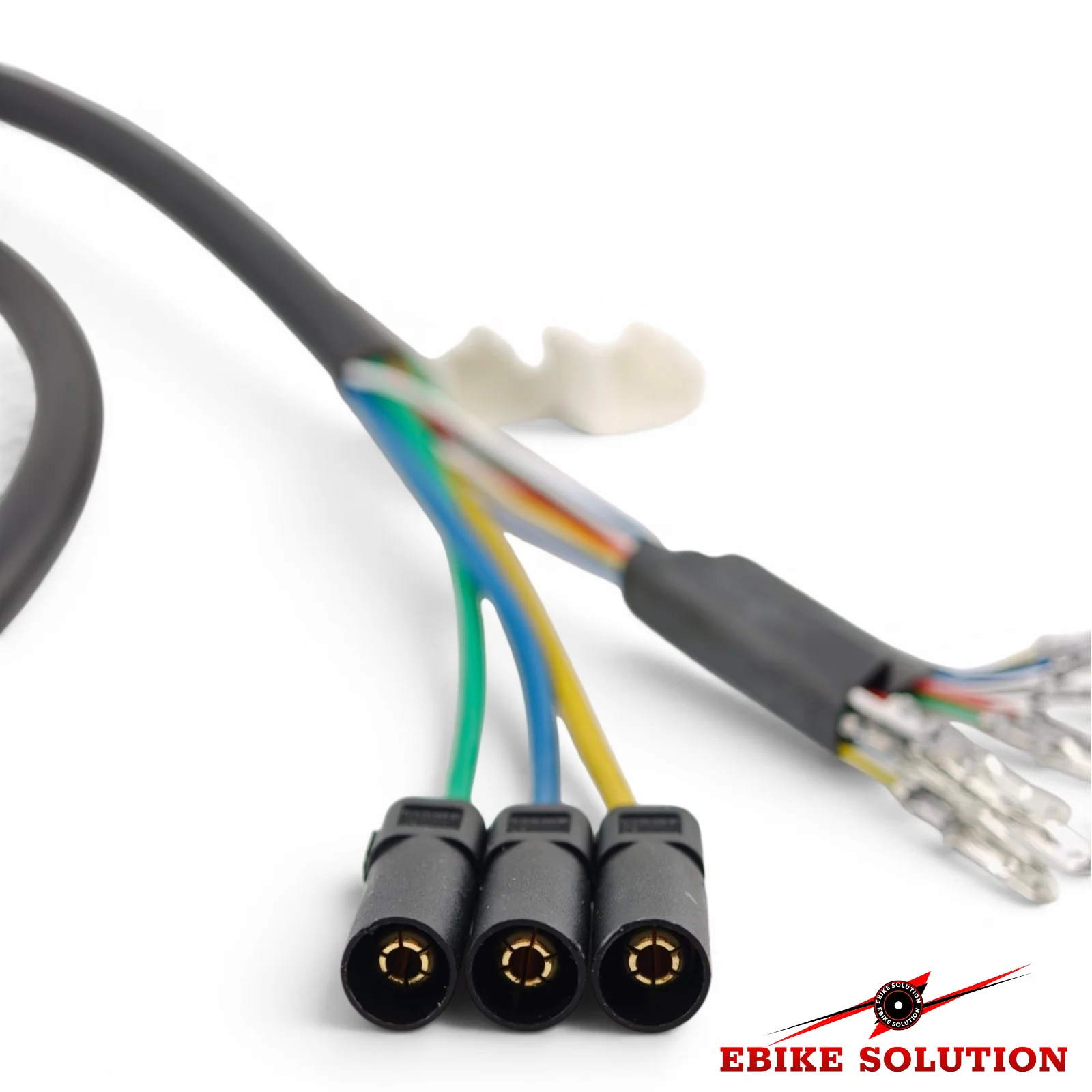

• XT150 Connectors: Equipped with robust XT150 phase connectors for a secure, high-current connection.

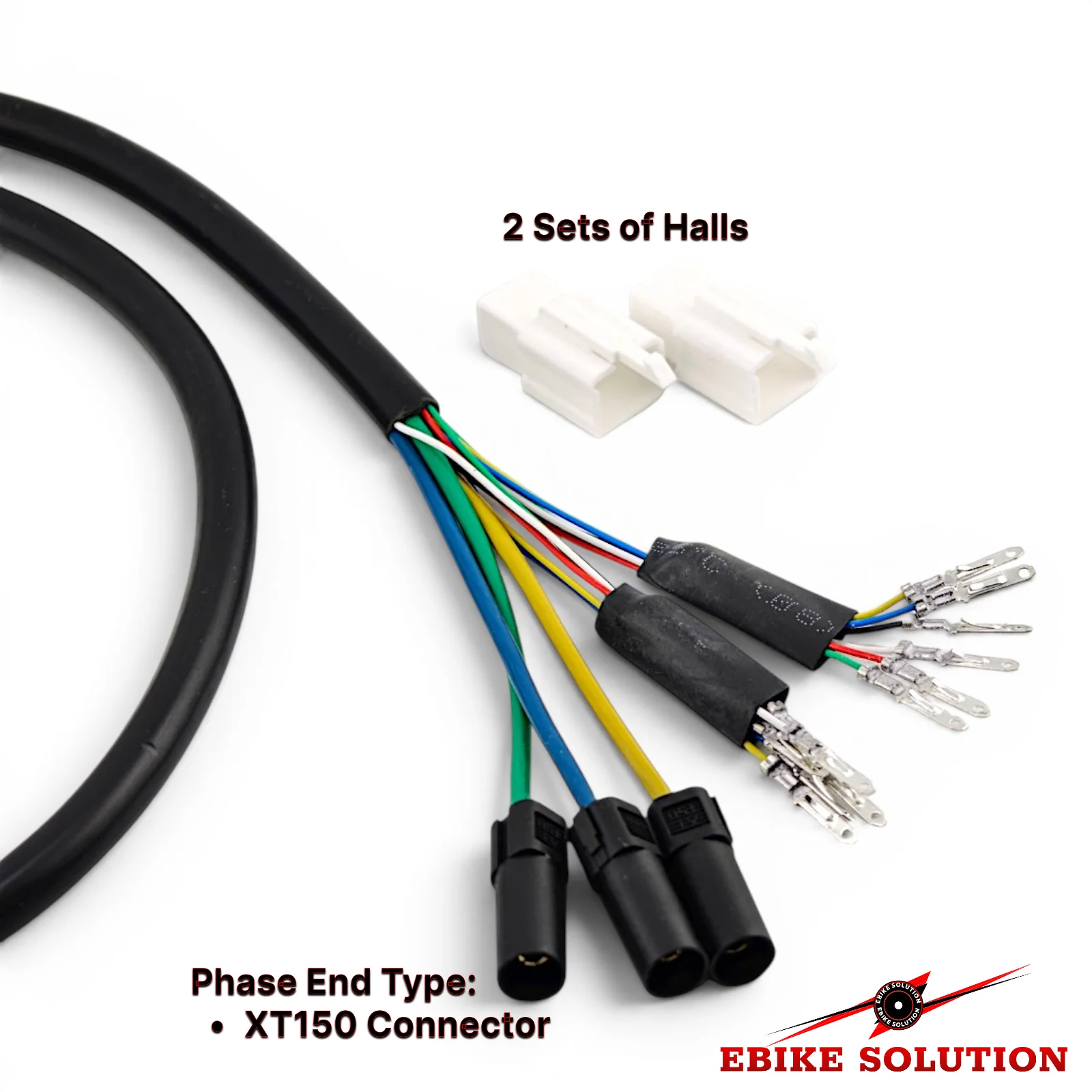

• Dual Hall Sensor Lines: Features 6 active Hall sensor wires plus 6 spare wires, offering excellent redundancy and easy repairs if a sensor line fails.

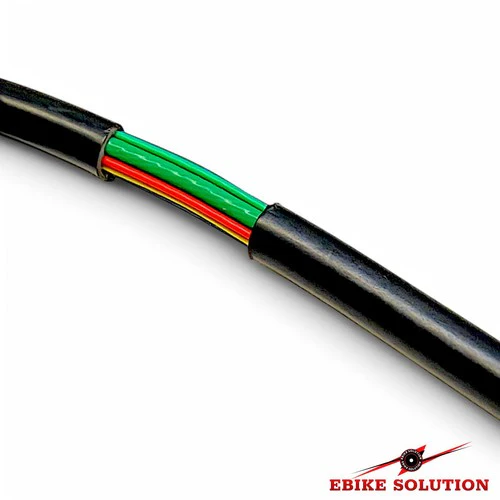

• Thick Insulation: Protected by a heavy-duty outer sleeve with an 11.7mm overall diameter to shield against the elements and mechanical wear.

---

Technical Specifications

Power Rating	Up to 3000W
Total Cable Length	1200mm
Phase Wire Gauge	9AWG (6mm² Section)
Phase Wire / Insulation Diameter	4mm Phase Wire / 11.7mm Overall Insulation
Phase Connectors	3 x XT150
Hall Sensor Setup	6 Wires + 6 Spare Wires (Dual Setup)
Hall Sensor Wire Colours	White (x2), Green (x2), Red (x2), Black (x2), Blue (x2), Yellow (x2)
Included Connectors	2 x Plastic Housing Male 6-pin

---

Package Contents

• 1 x 3000W Hub Motor Replacement Cable (1200mm)
