Ebike Hall Sensor H 413F for 72v QS 205 2000W 3000W QS 273 4000W Hb Motor
H413F E-Bike Hub Motor Hall Sensors for 72V QS205 / QS273 (3-Pack)
Restore your high-performance electric bike hub motor to peak condition with this premium set of H413F E-Bike Hall Sensors. Specifically selected for their reliability and precision, these bipolar latching sensors are the perfect replacement for heavy-duty, high-power motors, including the highly popular QS205 and QS273 series. By accurately detecting rotor position, these sensors ensure smooth, efficient, and highly responsive motor control under all riding conditions.
Key Features
- Precision Detection: Highly sensitive H413F magnetic sensors provide exact rotor position feedback to your controller, eliminating motor stutter and hesitation.
- High-Power Motor Compatibility: Ideally suited and widely used for repairing heavy-duty e-bike and e-motorcycle hub motors, particularly the QS Motor 205 and 273 series.
- Restores Smooth Performance: Replacing faulty hall sensors drastically improves overall ride quality, torque delivery, and controller efficiency.
- Complete Replacement Set: This package includes exactly 3 hall sensors—the exact amount required to fully rebuild the sensor board of a standard 3-phase BLDC hub motor.
Technical Specifications
| Item Type | BLDC Hub Motor Hall Sensor |
| Model Number | H413F (SS413F) |
| Sensor Type | Bipolar Latching Hall Effect Sensor |
| Motor Compatibility | QS205, QS273, and similar high-power brushless DC motors |

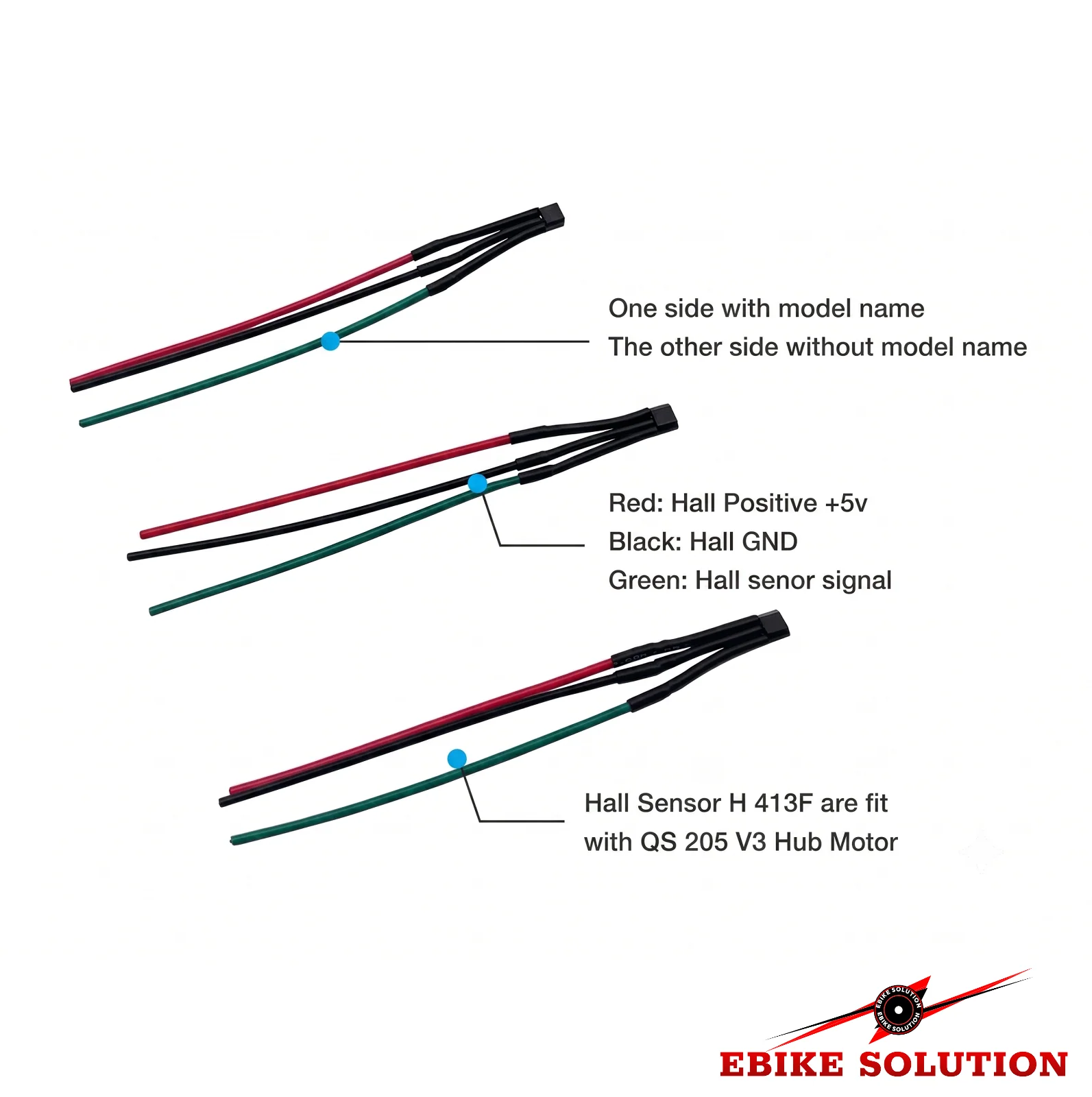

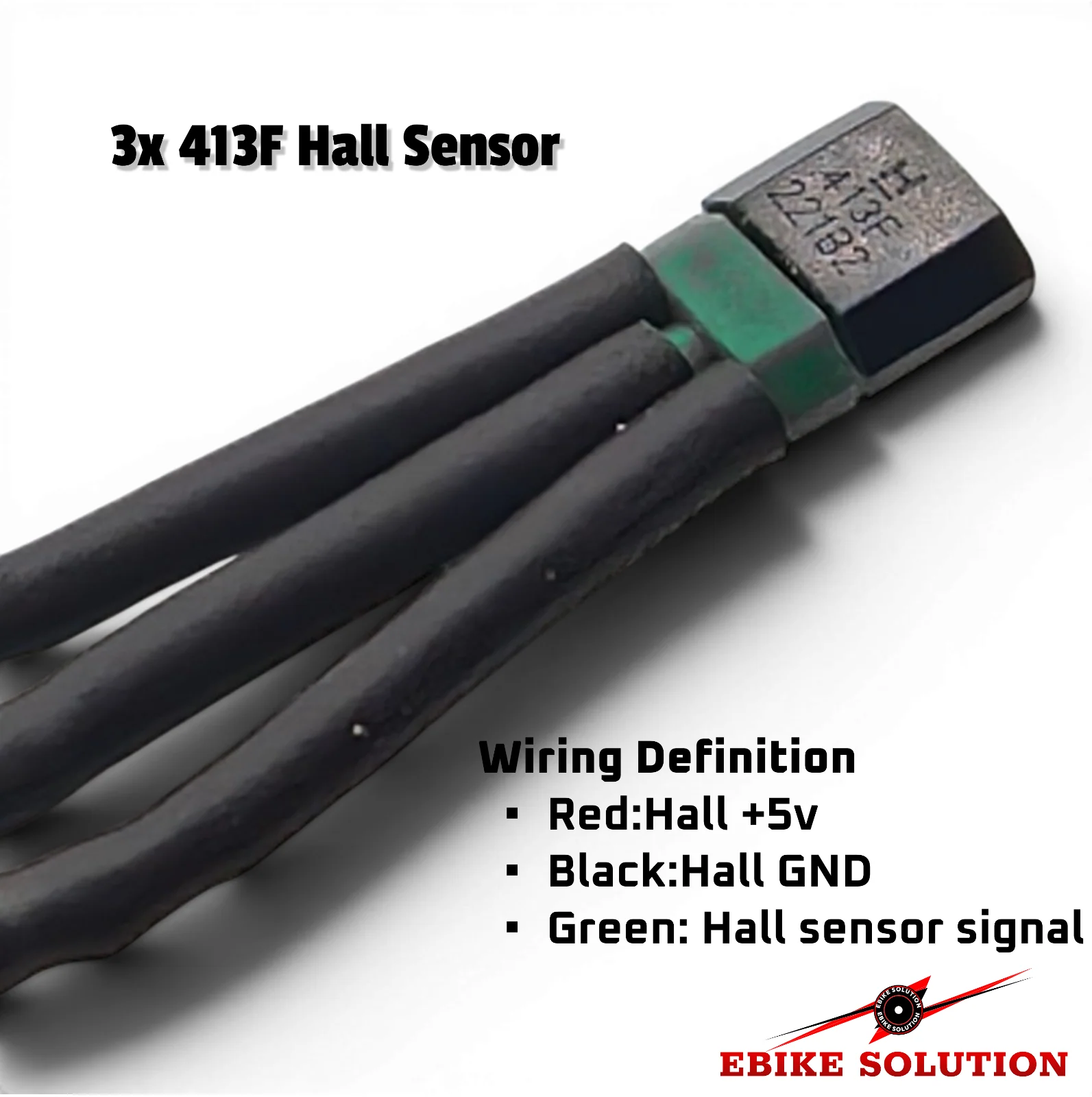

| Pin Count | 3 Pins per sensor (VCC, Ground, Output) |
| Quantity Included | 3 Pieces |
Package Contents

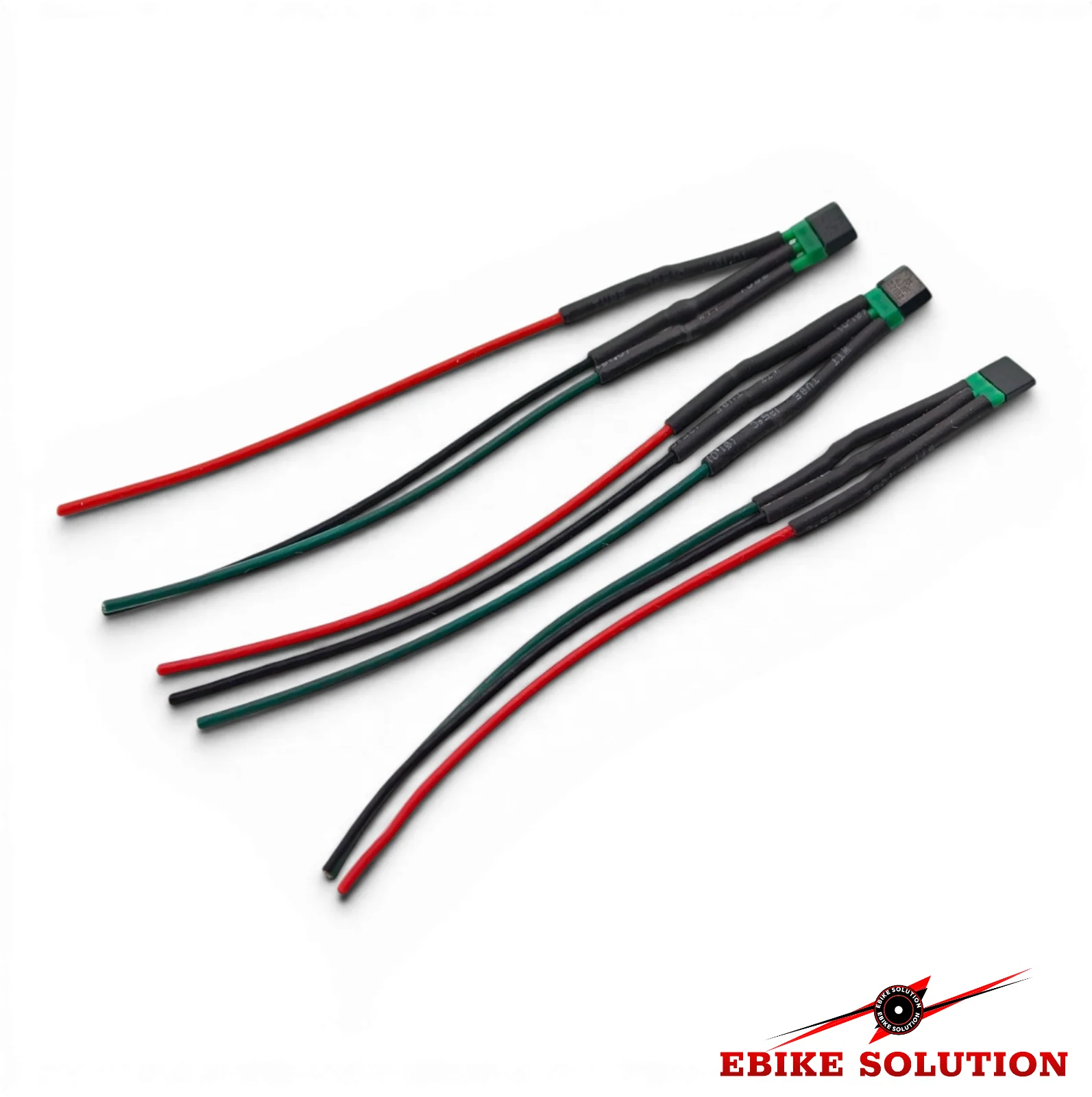

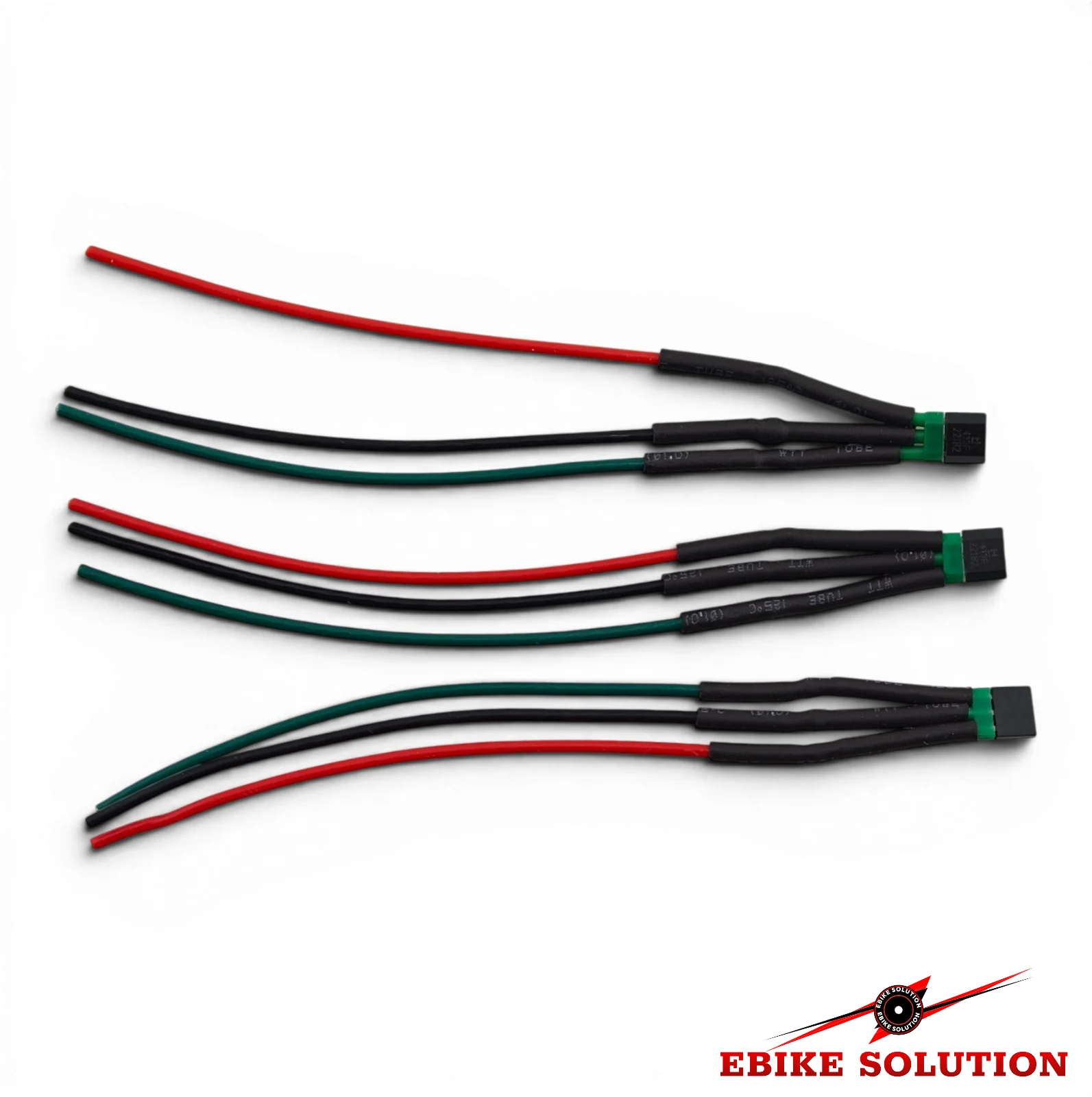

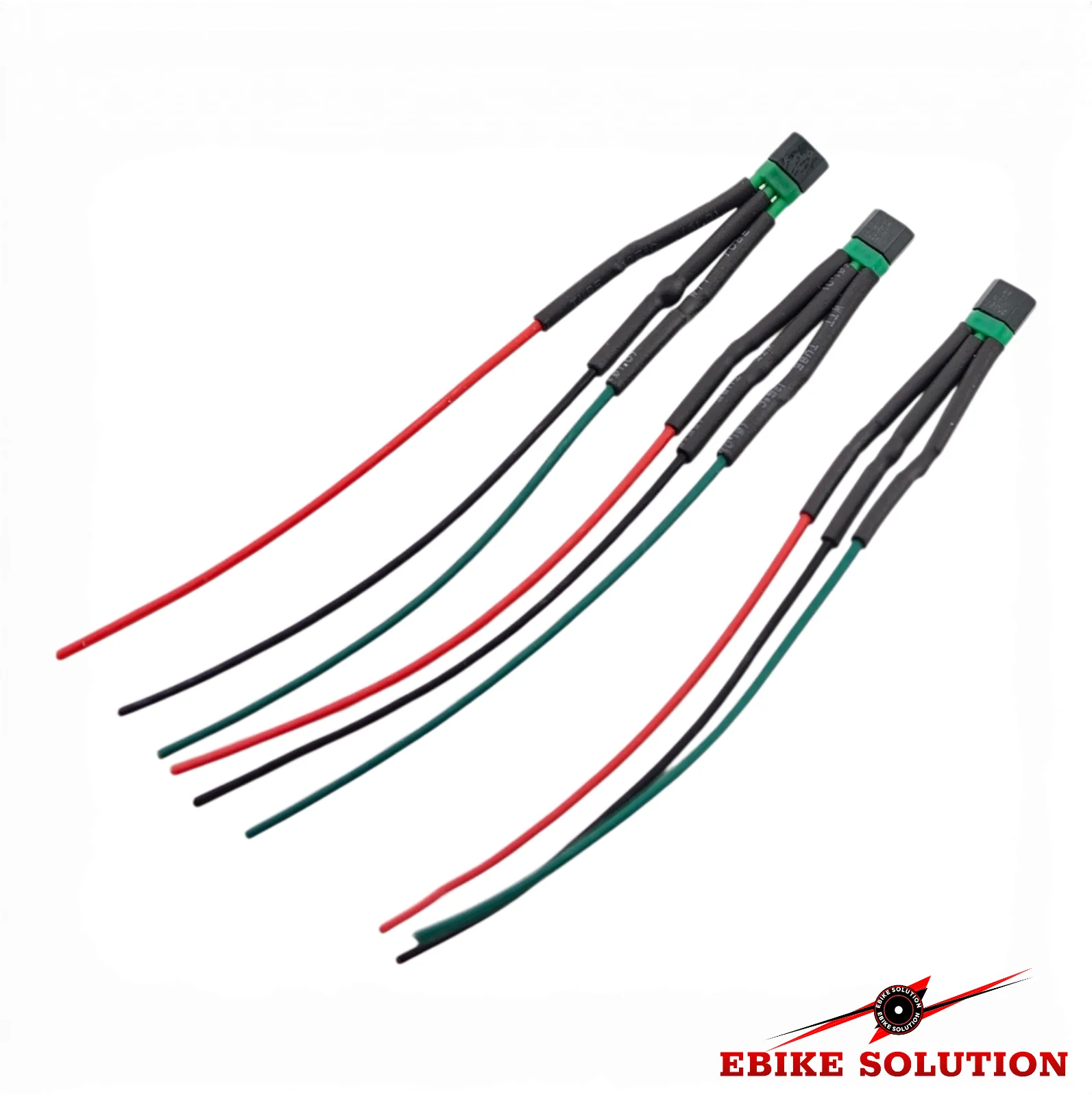

- 3 x H413F Hall Effect Sensors

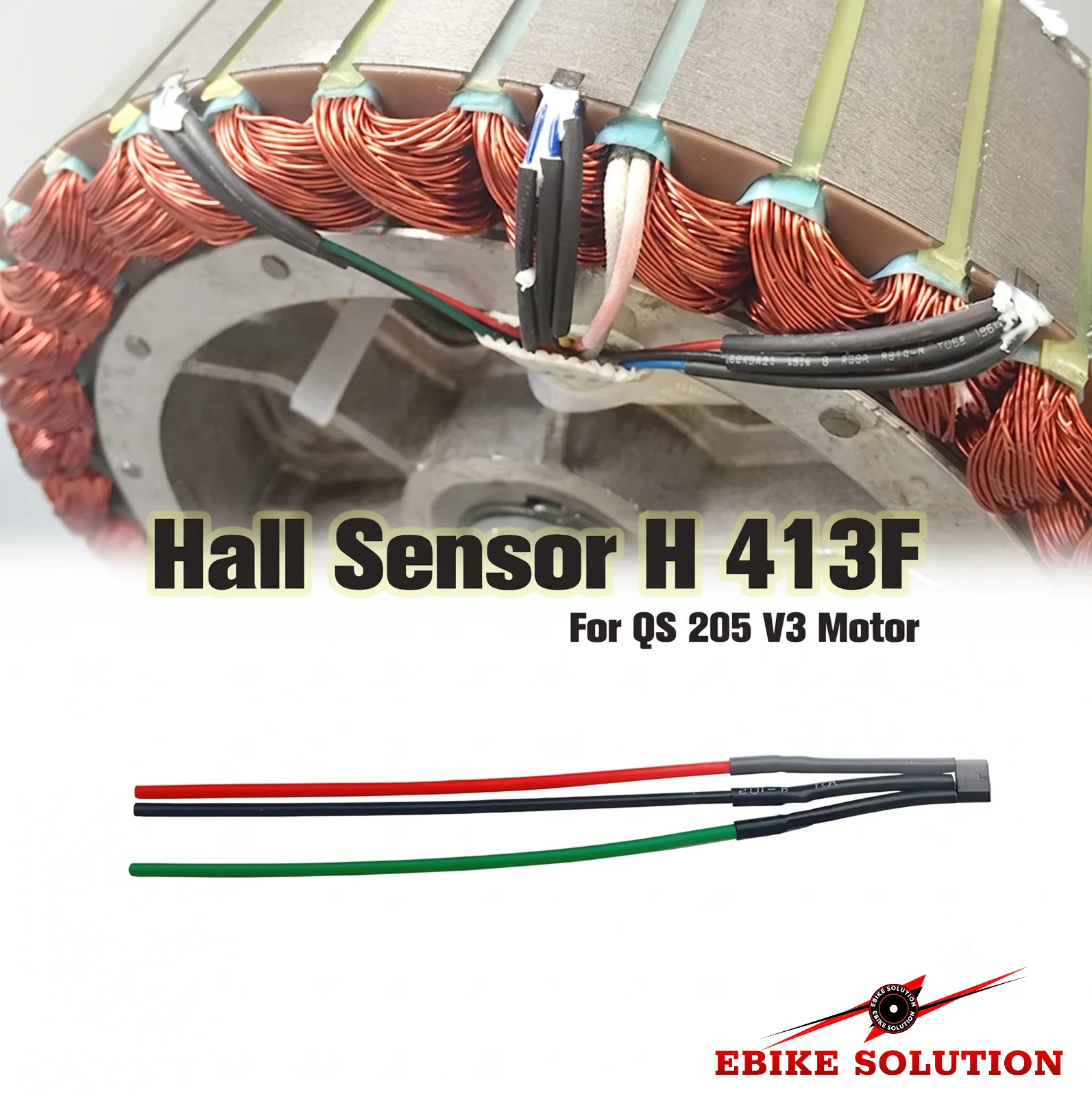

Installation Note: Hall sensors are sensitive electronic components. Installation requires basic soldering skills and careful placement within the motor stator slots. Ensure correct polarity when wiring to your motor's sensor board.
