Ebike Controller MQ 48/52V 30A Remote Speed Limit Sine Wave Dual Mode

Ebike Controller MQ 48/52V 30A Remote Speed Limit Sine Wave Dual Mode

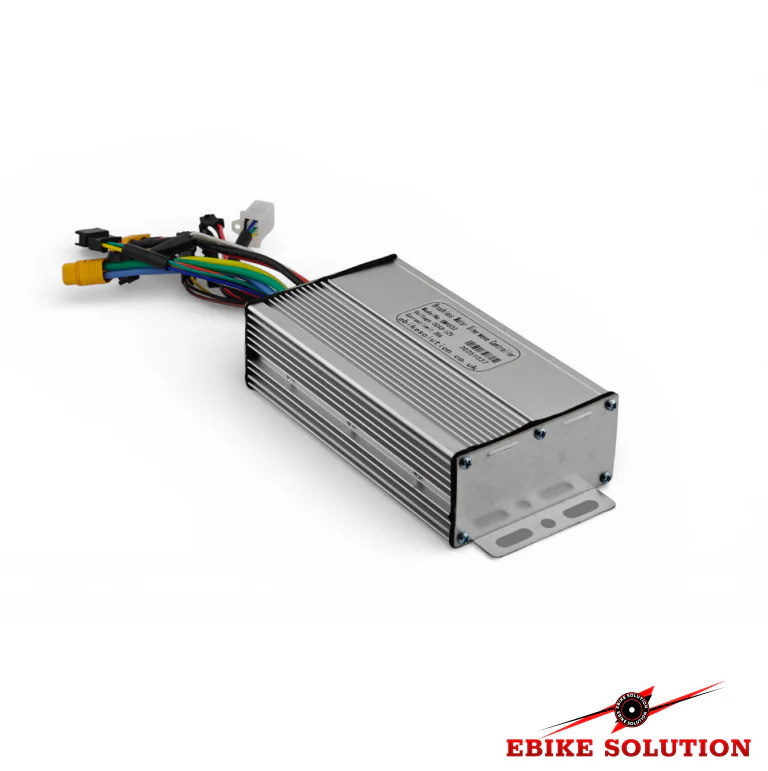

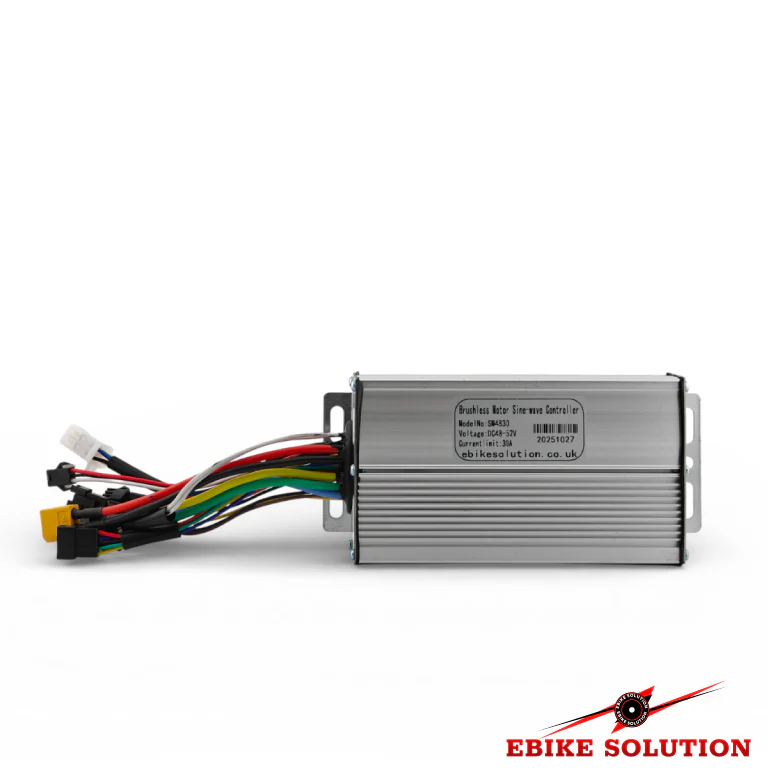

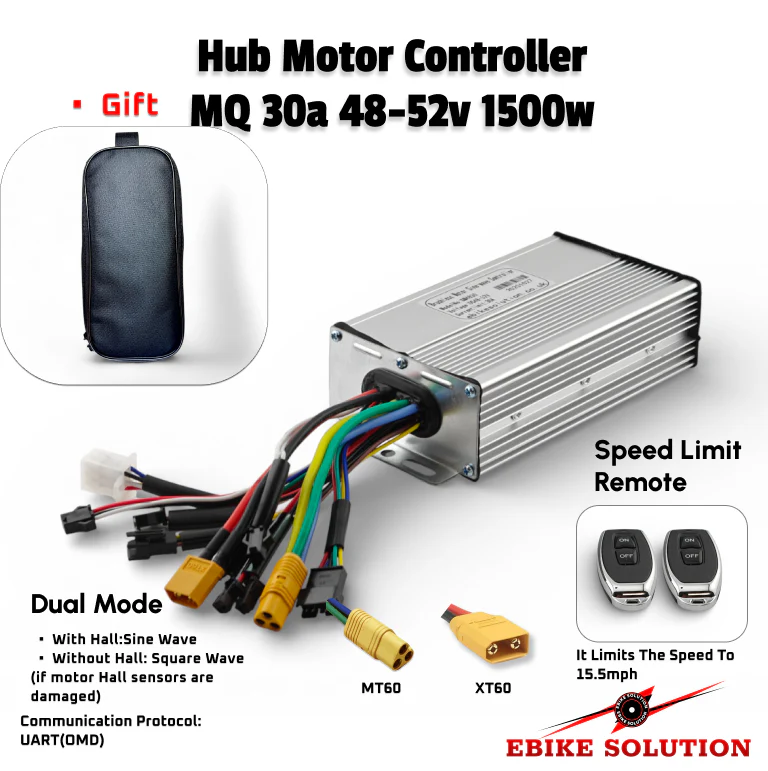

Ebike Brushless Motor Controller MQ 48/52V 30A Remote Speed Limit Sine Wave Dual Mode

Features:

  • Speed Limit ( will limit the speed to around 15.5 mph)
  • Fast self-learning mode: quickly match all kinds of motors
  • Smart Controller (can be used with any batteries)
     from 48v(13s) Less Speed
    up to 52V (14s) More Speed

Specifications:

  • Protocol: No.2 (LCD: SW900 / UKC1(omd) / M8 / S866 / EN06)
  • Controller Type:
    • Sine Wave (default)
    • Dual Mode (disconnect the hall plug and will work in sensorless mode, handy when hall sensors are broken or motor cable damaged)
  • Rated Voltage: DC 48-52V
  • Motor Compatibility: 1000-1500W
  • Maximum Current: 30±1A
  • Rated Current: 15A
  • MOSFETs: 12 high-efficiency MOSFETs
  • Size:15x9x4cm
  • Weight:550g approx
  • Cable Length: 13–18 cm

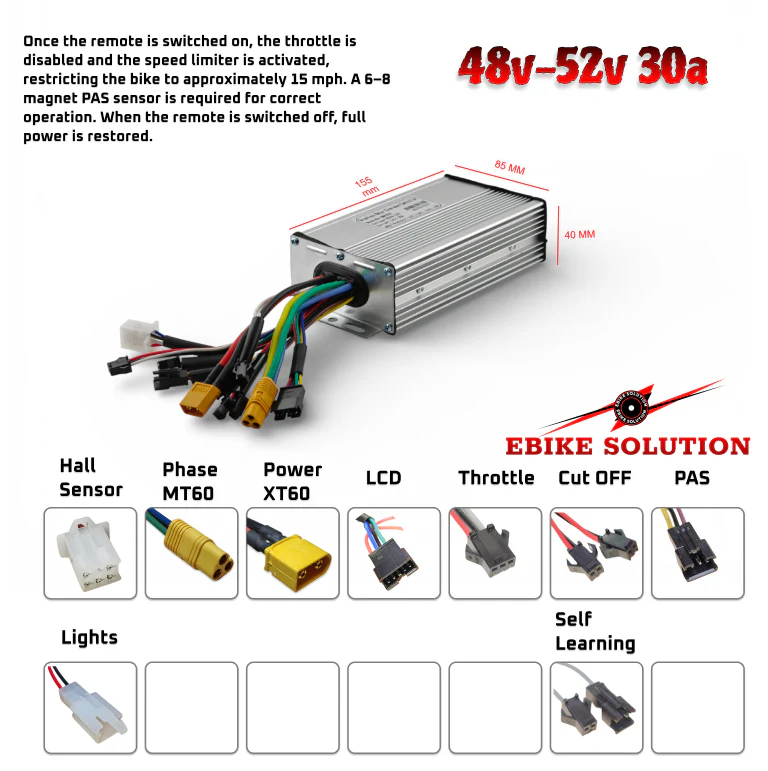

  • Battery Plug:  XT60
  • Motor Phase Plug: Rings or MT60

Package Include:

  • 1 X MQ 30A Sine Wave Controller with speed limit
$32.38

Original: $92.50

-65%
Ebike Controller MQ 48/52V 30A Remote Speed Limit Sine Wave Dual Mode—

$92.50

$32.38

Product Information

Shipping & Returns

Description

Ebike Brushless Motor Controller MQ 48/52V 30A Remote Speed Limit Sine Wave Dual Mode

Features:

  • Speed Limit ( will limit the speed to around 15.5 mph)
  • Fast self-learning mode: quickly match all kinds of motors
  • Smart Controller (can be used with any batteries)
     from 48v(13s) Less Speed
    up to 52V (14s) More Speed

Specifications:

  • Protocol: No.2 (LCD: SW900 / UKC1(omd) / M8 / S866 / EN06)
  • Controller Type:
    • Sine Wave (default)
    • Dual Mode (disconnect the hall plug and will work in sensorless mode, handy when hall sensors are broken or motor cable damaged)
  • Rated Voltage: DC 48-52V
  • Motor Compatibility: 1000-1500W
  • Maximum Current: 30±1A
  • Rated Current: 15A
  • MOSFETs: 12 high-efficiency MOSFETs
  • Size:15x9x4cm
  • Weight:550g approx
  • Cable Length: 13–18 cm
  • Battery Plug:  XT60
  • Motor Phase Plug: Rings or MT60

Package Include:

  • 1 X MQ 30A Sine Wave Controller with speed limit
