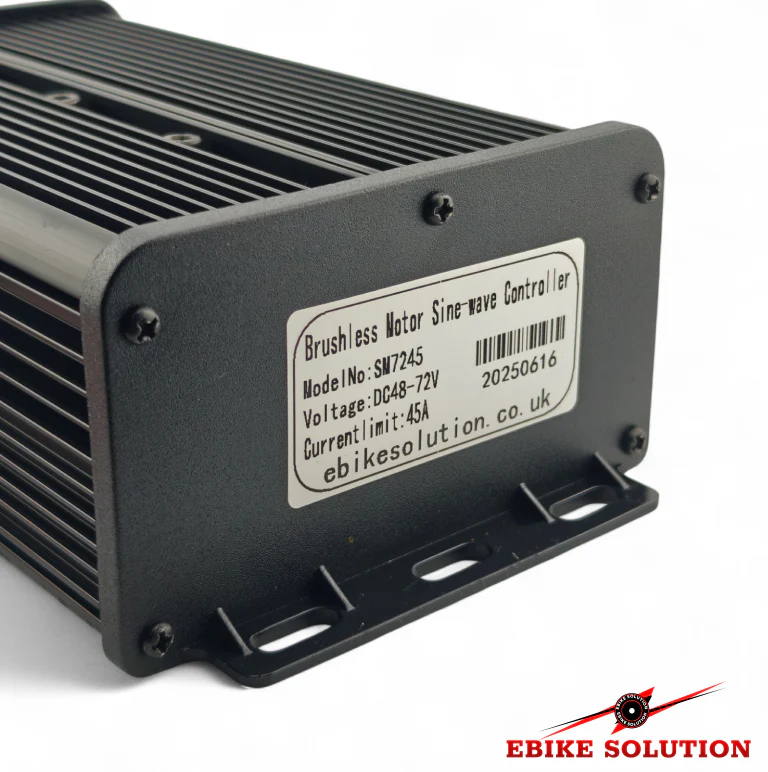

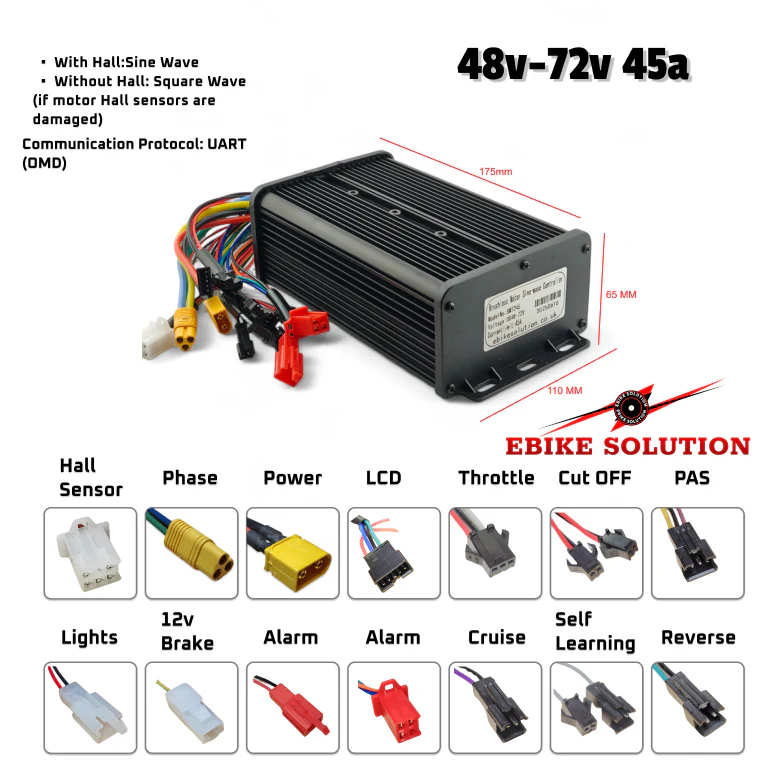

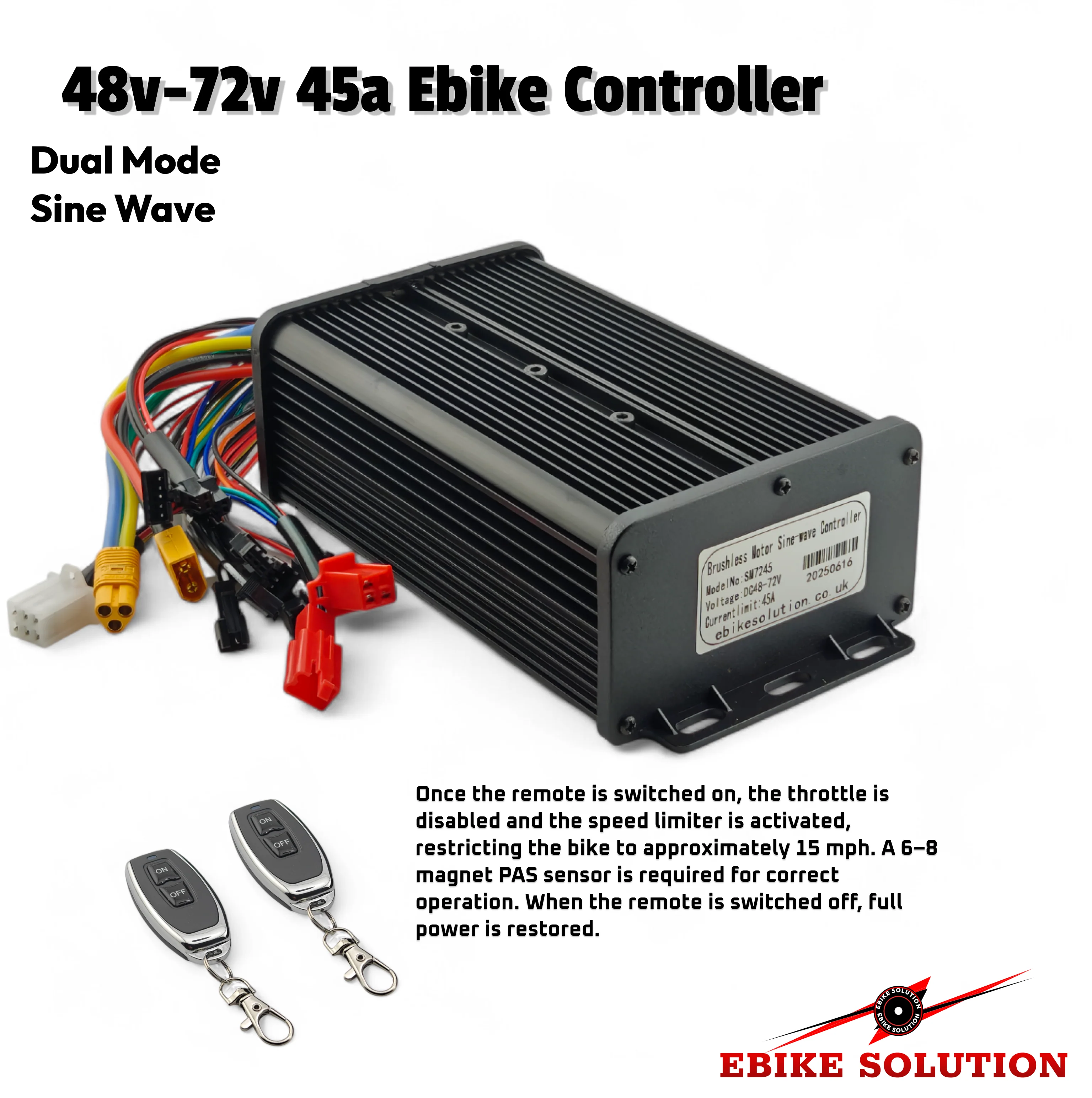

Ebike Controller 48-72V MQ 45A 2500W Sine Wave Dual Mode Self Learning

Ebike Controller 48-72V MQ 45A 2500W Sine Wave Dual Mode Self Learning

Ebike Brushless Motor Controller MQ 48-72V 45A Sine Wave Dual Mode

Features:

  • Fast self-learning mode: quickly match all kinds of motors
  • Smart Controller (can be used with any batteries)
    from 48v(13s) Less Speed
    up to 72V (20s) More Speed

Specifications:

  • Protocol: No.2 (LCD: SW900 / UKC1(omd) / M8 / S866 / EN06)
  • Controller Type:
    • Sine Wave (default)
    • Dual Mode (disconnect the hall plug and will work in sensorless mode, handy when hall sensors are broken or motor cable damaged)
  • Rated Voltage: DC 48-72V
  • Power Output:
    • 48V- 2160W
    • 52V-2340W
    • 60V-2700W
    • 72V-3240W
  • Motor Compatibility: 2000W
  • Maximum Current: 45±1A
  • Rated Current: 22A
  • MOSFETs: 18 high-efficiency MOSFETs
  • Size:18x11x5cm
  • Weight: 850g approx
  • Cable Length: 13–18 cm
  • Battery Plug:  XT60
  • Motor Phase Plug: MT60

Package Included

  • 1 X MQ 45A Sine Wave Controller
$51.61

Original: $147.46

-65%
Ebike Controller 48-72V MQ 45A 2500W Sine Wave Dual Mode Self Learning—

$147.46

$51.61

Product Information

Shipping & Returns

Description

Ebike Brushless Motor Controller MQ 48-72V 45A Sine Wave Dual Mode

Features:

  • Fast self-learning mode: quickly match all kinds of motors
  • Smart Controller (can be used with any batteries)
    from 48v(13s) Less Speed
    up to 72V (20s) More Speed

Specifications:

  • Protocol: No.2 (LCD: SW900 / UKC1(omd) / M8 / S866 / EN06)
  • Controller Type:
    • Sine Wave (default)
    • Dual Mode (disconnect the hall plug and will work in sensorless mode, handy when hall sensors are broken or motor cable damaged)
  • Rated Voltage: DC 48-72V
  • Power Output:
    • 48V- 2160W
    • 52V-2340W
    • 60V-2700W
    • 72V-3240W
  • Motor Compatibility: 2000W
  • Maximum Current: 45±1A
  • Rated Current: 22A
  • MOSFETs: 18 high-efficiency MOSFETs
  • Size:18x11x5cm
  • Weight: 850g approx
  • Cable Length: 13–18 cm
  • Battery Plug:  XT60
  • Motor Phase Plug: MT60

Package Included

  • 1 X MQ 45A Sine Wave Controller
