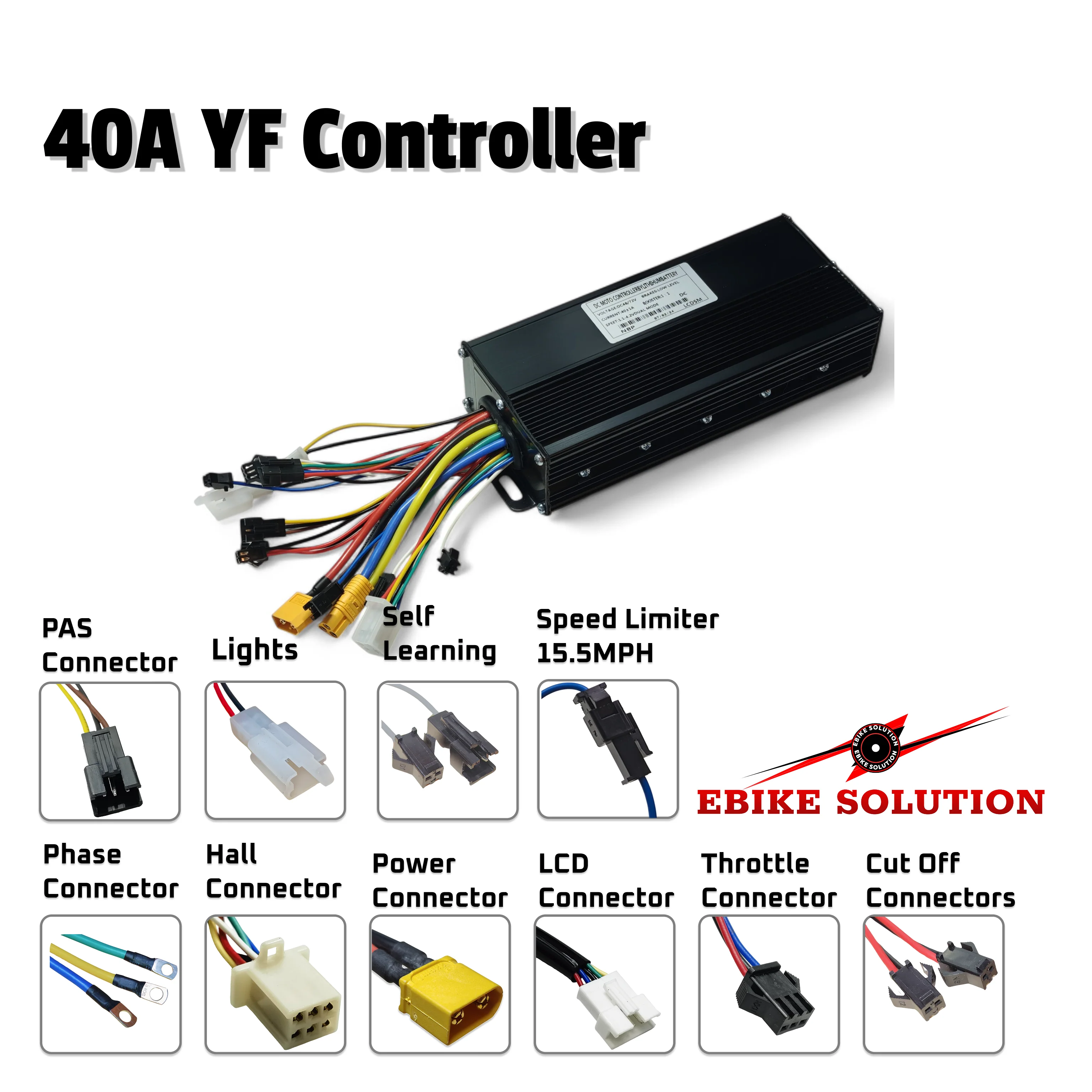

Ebike Brushless Motor Controller YF 48-72V 40A Sine Wave Dual Mode

Ebike Brushless Motor Controller YF 48-72V 40A Sine Wave Dual Mode

Ebike Brushless Motor Controller YF 48-72V 40A Sine Wave Dual Mode

Features:

  • Speed Limit ( will limit the speed to around 15.5 mph)
  • Fast self-learning mode: quickly match all kinds of motors
  • Smart Controller (can be used with any batteries)
     from 48v(13s) Less Speed
    up to 72V (20s) More Speed

Specifications:

  • Protocol: No.2 (LCD: SW900 / UKC1(omd) / M8 / S866 / EN06)
  • Controller Type:
    • Sine Wave (default)

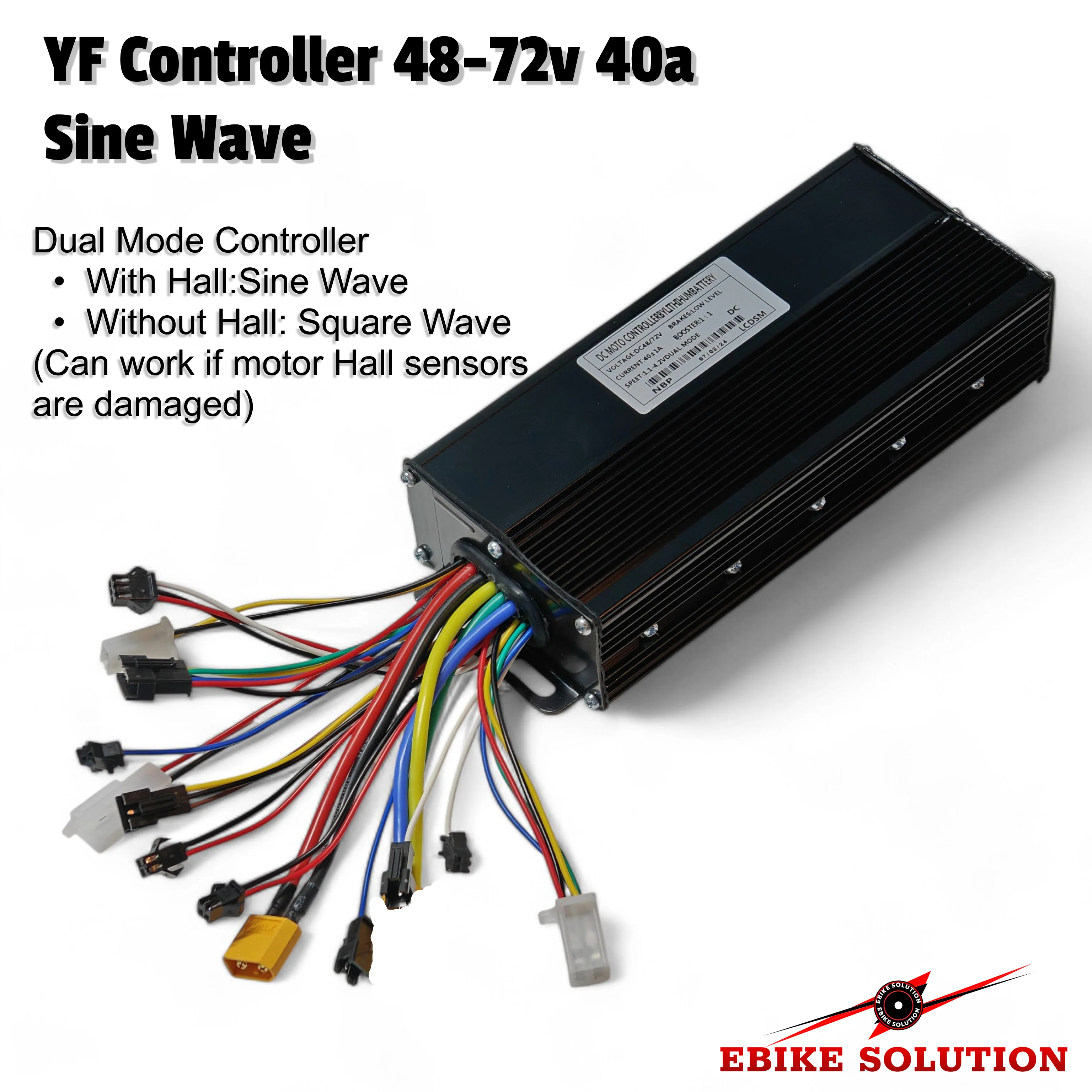

    • Dual Mode (disconnect the hall plug and will work in sensorless mode, handy when hall sensors are broken or motor cable damaged)
  • Rated Voltage: DC 48-72V
  • Power Output:
    • 48V- 1900W
    • 52V-2080W
    • 60V-2400W
    • 72V-2800W
  • Motor Compatibility: 2000W
  • Maximum Current: 40±1A
  • Rated Current: 20A
  • MOSFETs: 15 high-efficiency MOSFETs
  • Size:18x9x5cm
  • Weight:650g approx
  • Cable Length: 13–18 cm
  • Battery Plug:  XT60
  • Motor Phase Plug: Rings or MT60

Package Include:

  • 1 X YF 40A Sine Wave Controller
Select Phase Wire Type
From $119.31
Ebike Brushless Motor Controller YF 48-72V 40A Sine Wave Dual Mode—
$119.31

Product Information

Shipping & Returns

Description

Ebike Brushless Motor Controller YF 48-72V 40A Sine Wave Dual Mode

Features:

  • Speed Limit ( will limit the speed to around 15.5 mph)
  • Fast self-learning mode: quickly match all kinds of motors
  • Smart Controller (can be used with any batteries)
     from 48v(13s) Less Speed
    up to 72V (20s) More Speed

Specifications:

  • Protocol: No.2 (LCD: SW900 / UKC1(omd) / M8 / S866 / EN06)
  • Controller Type:
    • Sine Wave (default)
    • Dual Mode (disconnect the hall plug and will work in sensorless mode, handy when hall sensors are broken or motor cable damaged)
  • Rated Voltage: DC 48-72V
  • Power Output:
    • 48V- 1900W
    • 52V-2080W
    • 60V-2400W
    • 72V-2800W
  • Motor Compatibility: 2000W
  • Maximum Current: 40±1A
  • Rated Current: 20A
  • MOSFETs: 15 high-efficiency MOSFETs
  • Size:18x9x5cm
  • Weight:650g approx
  • Cable Length: 13–18 cm
  • Battery Plug:  XT60
  • Motor Phase Plug: Rings or MT60

Package Include:

  • 1 X YF 40A Sine Wave Controller
