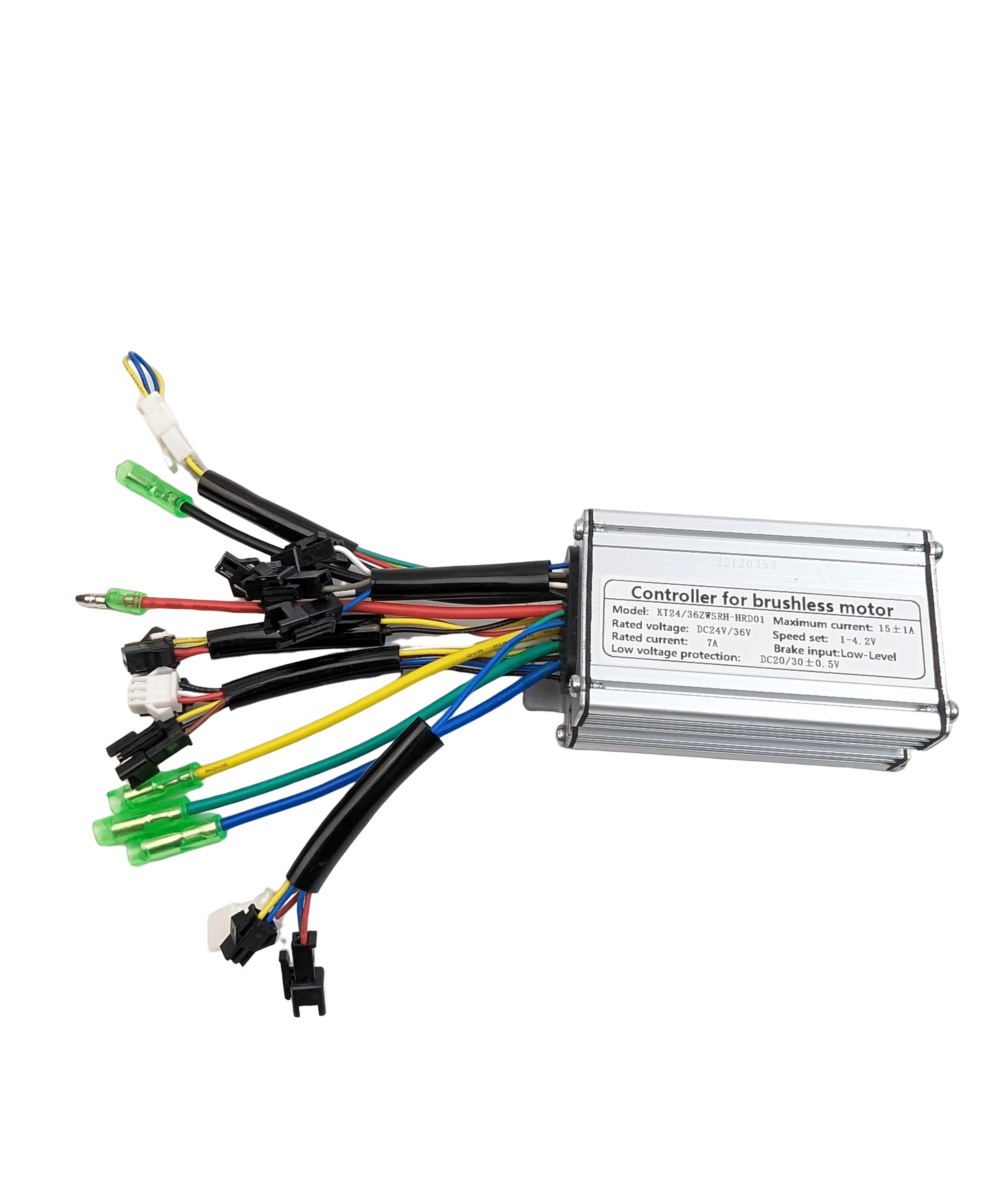

24V/36V 250W 15A Brushless DC Square Wave Controller Ebike Sensorless
24V/36V 250W 15A Brushless DC Square Wave Controller Ebike Sensorless
UK Stock Fast Delivery

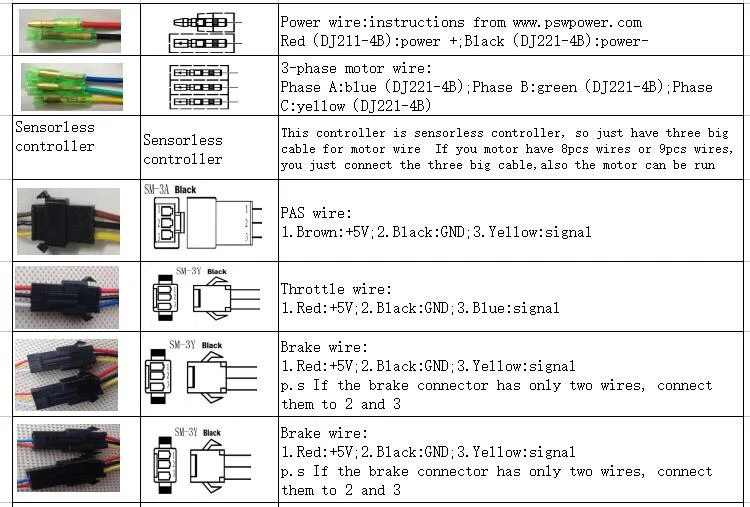

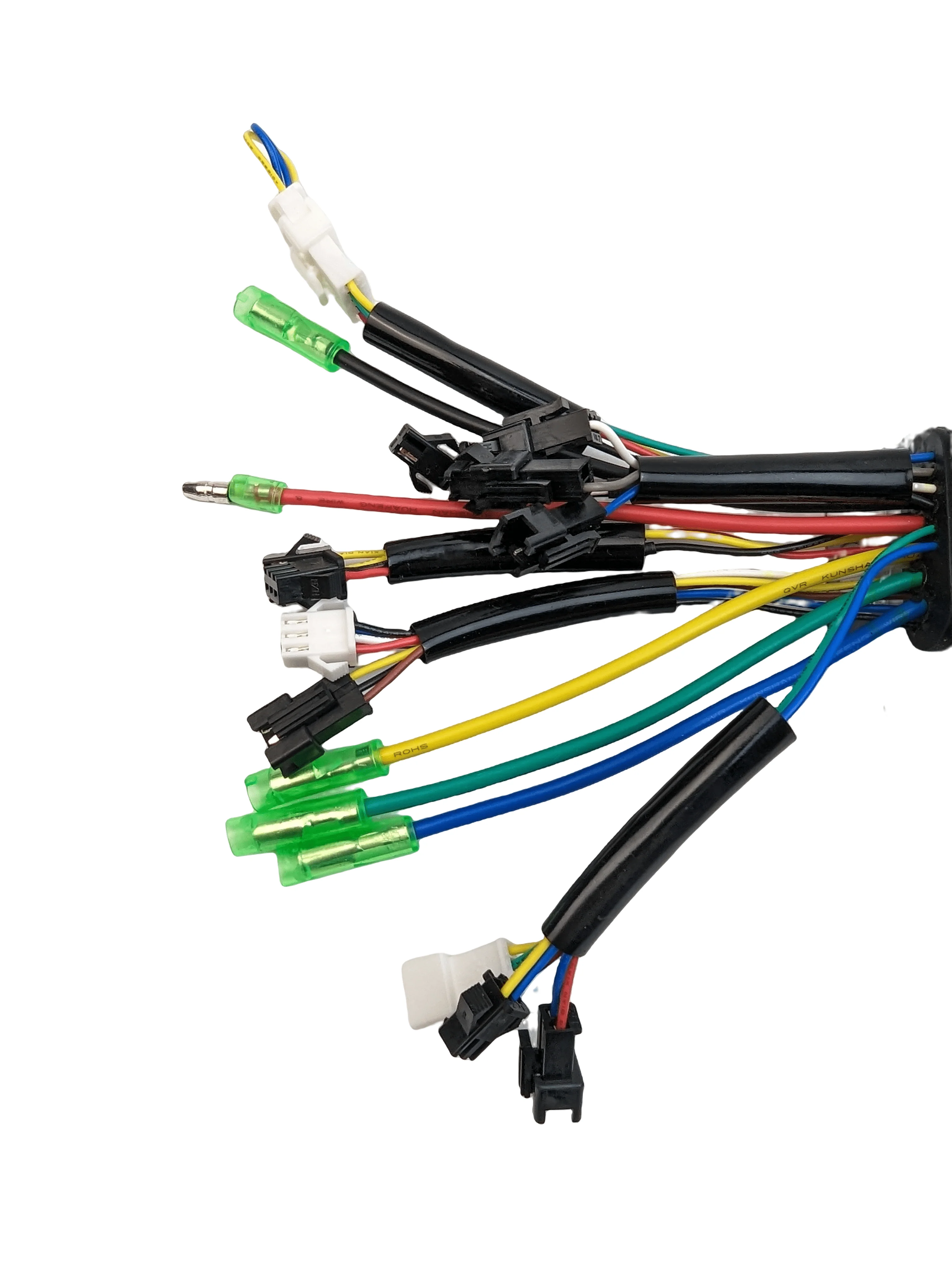

- This controller is sensorless controller(Without Hall Plug), so just have three big cable for motor wire If you motor have 8pcs wires or 9pcs wires, you just connect the three big cable.
Product details:
- 24V or 36V UniversalĀ (support both voltage)
- This controller can working without the PAS(Pulse Padel Assistant Sensor)
- Torque Simulation Square Wave Controlle (more stable, high efficiency, low current consumption, long life)

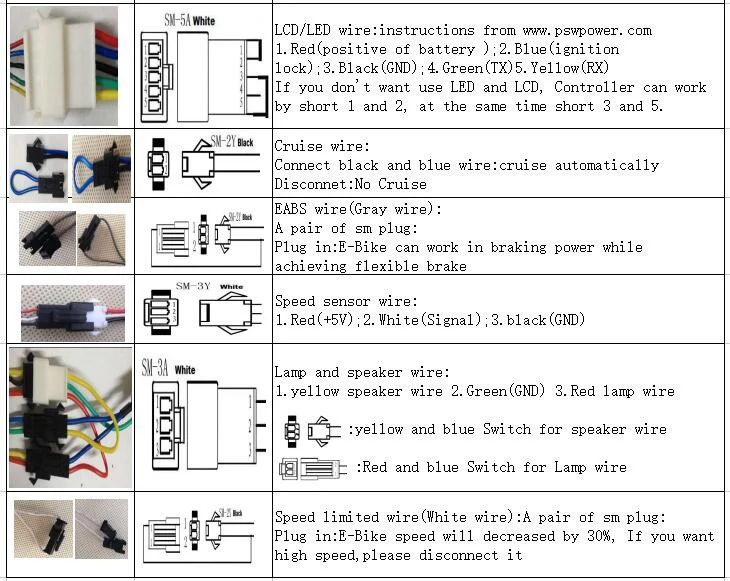

- Support hydraudic brake sensor or brake sensor connector
- Support LED Control Panel or LCD Control Panel
- Support 24V or 36V Light Control
- Support speed limit to 70%
- Support Cruise Function
- Support speaker and led right
- Support Regenerative Function (must use our LCD Display together to active this function)

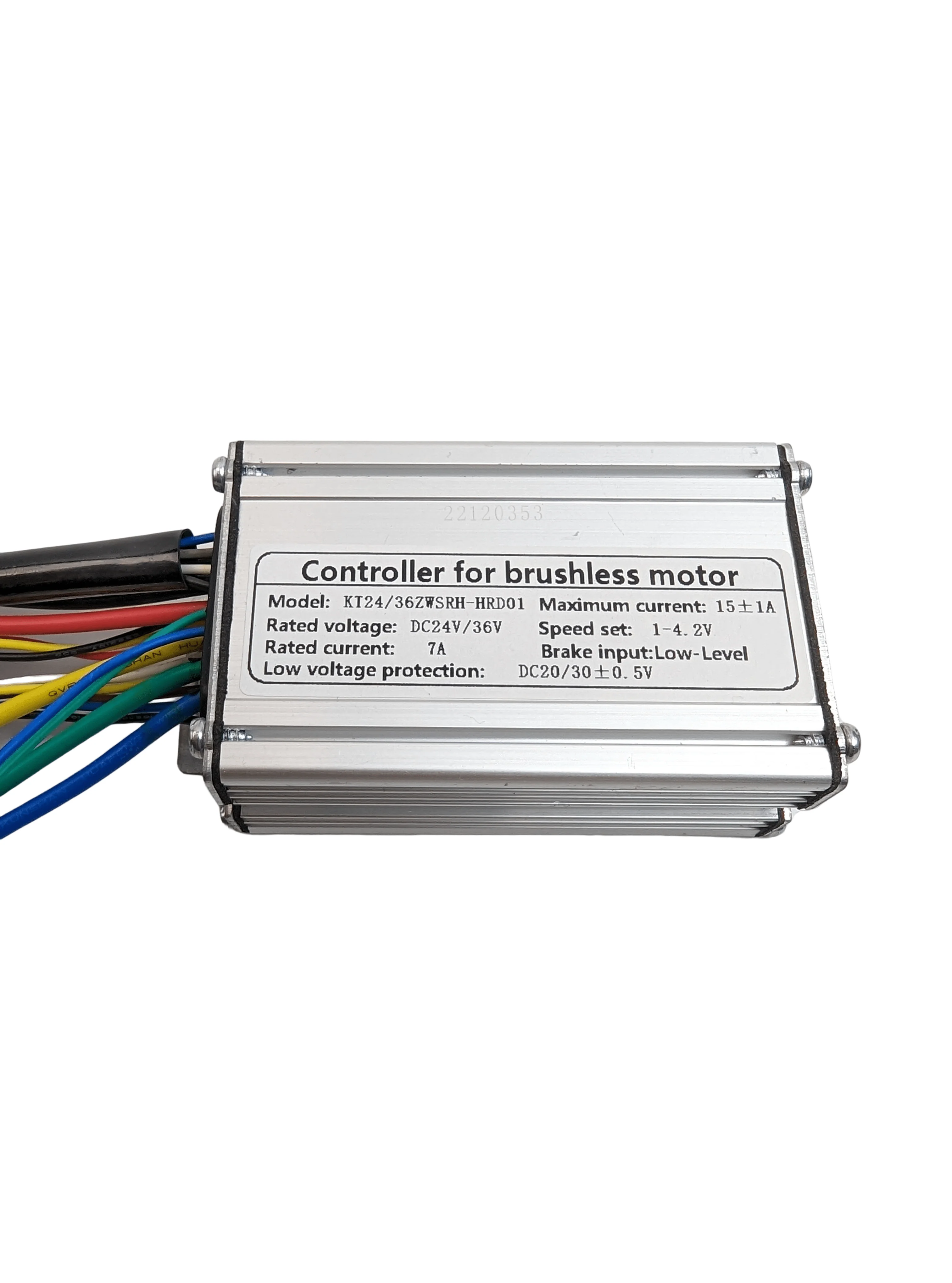

Specifications:
- Input Voltage: DC 24V or 36V (Universal)
- Min. Voltage: DC20V/30Ā±0.5V
- Max. Current: 15Ā±1A
- Rated Curent: 7A
- Speed set: 1-4.2V
- Brake Input: Low-Level
- Size: 85x53x31mm
- Color: Silver
- Weight: 350g
- 6 pcs stronger MOSFET
- Applicatoin: Max. 36V /48V 250W
- Fit Bafang 8FUN 250W motorĀ AKM 350W QQ 350W motor
Package Included
- 1 X 24V/36V 250W 15A Brushless DC Square Wave ControllerĀ
Shipping information: We offer free shipping on most of our items,dispatched same day Monday to Friday before 3PM.We can offer next day delivery on some of our items depending on availability and shipping address.
Guarantee: Offer a money-back guarantee or warranty to give the customer peace of mind when making a purchase.
Feedback:Your satisfaction and positive feedback is very important for us, if you have any problems, don't hesitate to contact us. We'll do our best to serve you.
Original: $83.12
-65%$83.12
$29.09Product Information
